3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications

3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications

Image Grand :  3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications

Détails sur le produit:
Lieu d'origine: Shanghai, Chine
Nom de marque: RV
Numéro de modèle: RV-P-K2A88-F
Conditions de paiement et expédition:
Quantité de commande min: 2
Prix: $1,666.70
Contact

3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications

description de
Matériel: Pp Diaphragme: VT
Poids: 66kgs Pression maximale: 120psi (0,84 MPA, 8,4bar)
siège de boule: PVDF Flux maximum: 270gpm (1022lpm)
Pression de travail maximale: 120 psi (0,84MPA, 8,4bar) Débit maximum: 270gpm (1022L / m)
Vitesse maximale réciproque: 135 cm Hauteur maximale d'aspiration: 5m
Grain maximal autorisé: 0,37 pouce. (9,4 mm) Max Air Consumption: 180SCFM (90L / S)
Taille d'entrée d'air: 3/4po Taille de la sortie d'air: 1 po
Taille d'entrée fluide: 3 po taille de sortie fluide: 3 po
Mettre en évidence:

270gpm Max Flow Pneumatic Diaphragm Pump

,

1 Year Warranty AODD Pump

,

Air-Driven Diaphragm Pump

3-Inch Pneumatic Air-Driven Diaphragm Pump VT Ball for Wastewater & Drinking Water Treatment
Product Specifications
Specification Value
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 270gpm (1022L/M)
Max Reciprocating Speed 135cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.37in. (9.4mm)
Max Air Consumption 180scfm (90L/S)
Air Inlet Size 3/4in
Air Outlet Size 1in
Fluid Inlet Size 3in
Fluid Outlet Size 3in
Weight PP pump: 79KGS

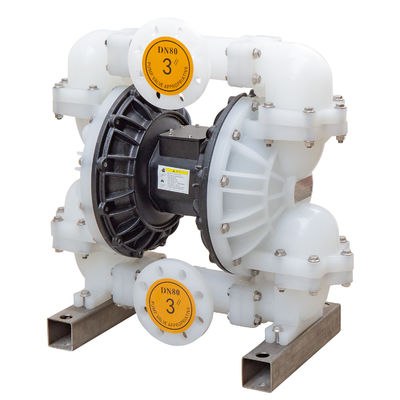

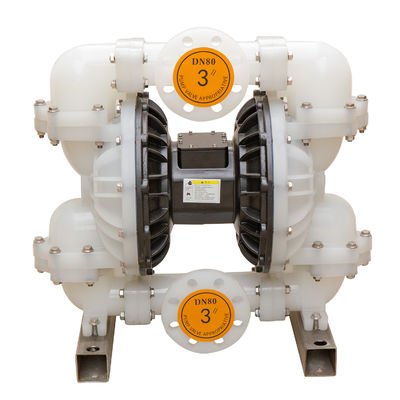

Product Images
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 0
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 1
Our Advantages
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 2
Packing & Delivery
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 4
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 5
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 6

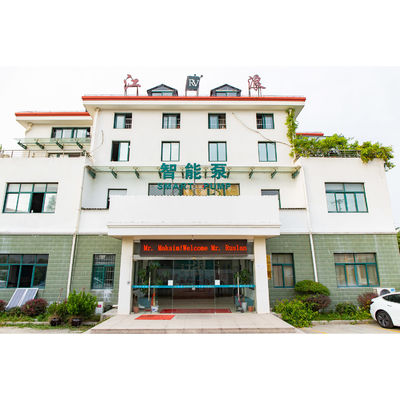

Company Profile
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 7
Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company in consecutive years.
Our product range includes:
  • Pneumatic Diaphragm Pumps
  • Electric Diaphragm Pumps
  • Piston Pumps
  • Powder Pumps
  • Sanitary Pumps
  • Diaphragm Pumps with Leakage Detector Controller
  • Pneumatic Diaphragm Regulating Valves
  • Control Valves
  • Sequencing Valves
Our products hold over 40 patents, including 10 invention patents. We participated in setting national standards for pneumatic diaphragm pumps in petrochemical industry (SH/T 3191-2017) and hold certifications including TS, CE, ATex, ISO9001, and SGS.
Our Service
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 8
  • All inquiries replied within 24 working hours
  • Professional pump producer with dedicated design team
  • Standard export wooden case packaging (non-fumigation)
  • Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment?
A: D/P, T/T, Western Union - please confirm exact payment method with us when ordering.
Q: What is the delivery time?
A: Depends on quantity. Typically 1-7 working days.
Q: What about package?
A: Cartons with foam inside, wooden case, and pallet options available.
Q: How are the products delivered?
A: By international express or sea freight.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Can products be made to different standards?
A: Yes, we can produce according to custom requirements.
