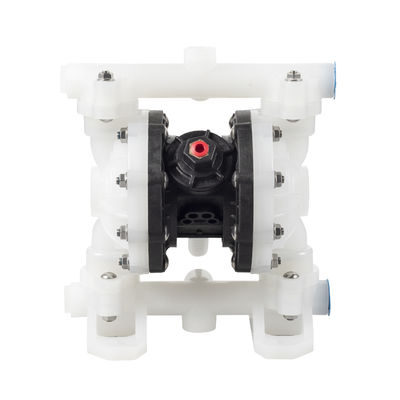

PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities

PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities
PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities

Image Grand :  PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities

Détails sur le produit: Conditions de paiement et expédition:
Quantité de commande min: 2 ensembles
Prix: $162.70/sets >=2 sets
Contact

PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities

description de
Application: Autre, industrie automobile, industrie de combustible organique, bâtiments commerciaux, solutions de Garantie: 1 an
Numéro de modèle: RV-P-52A55-T brand name: RV
Lieu d'origine: Shanghai, Chine Un accompagnement personnalisé: OEM, ODM
Source d'alimentation: Pneumatique Structure: Pompes de diaphragme
Nom du produit: Pompes à diaphragme pneumatique Matériel: PP
Couleur: Blanc Siège: PVDF
Marque: Rv Pression maximale: 100 psi (0,7 MPa, 7 bars)
Emballer: carton Poids: 2.8kgs
Flux maximum: 15 gal/min (57 l/min) Diamètre de débouché: 3/8 dans.
Mettre en évidence:

100psi Max Pressure Pneumatic Diaphragm Pump

,

15gpm Max Flow Air Double Diaphragm Pump

,

1 Year Warranty AODD Pump

Specification
Max Working Pressure
100 psi (0.7Mpa , 7bar)
Max Flow Rate
15gpm(57L/M)
Max Reciprocating Speed
400cpm
Max Suction Height (Dry Sucking)
4.5m
Max Permitted Grain
3/32in. (2.5mm)
Max Air Consumption
20 scfm(10L/S)
Air Inlet Size
1/4 in
Air Outlet Size
3/8 in
Fluid Inlet Size
1/2 in
Fluid Outlet Size
1/2in
Weight
PP pump： 3.0KGS  PVDF pump: 3.4KGS
PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities 0
PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities 1
Our Advantages
PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities 2
Packing & Delivery
PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities 3
PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities 4
PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities 5
PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities 6
Company Profile
PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities 7
Company Introduction:
Shanghai Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Shanghai Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
Shanghai Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.
Shanghai Jianglang has established long term business relationship with famous enterprise such as BASF,Bayer,SAMSUNG ect. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".
Our Service
PP 1/2 Inch Pneumatic Diaphragm Pump with 100psi Max Pressure and 15gpm Max Flow for Industrial Utilities 8
* All of the enquiry will be replied within 24 working hours

* Professional pump producer, with design team.

* All of the goods are packed with standard export wooden case (non-fumigation)

* Fast after-service
FAQ
1. Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity. Generally Speaking , 1-7 working day .

4. Q: What about package?
A: Cartons with foam inside & wooden case & Pallet

5. Q: How are the products delivered to us?
A: By International express or Sea.

6. Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
