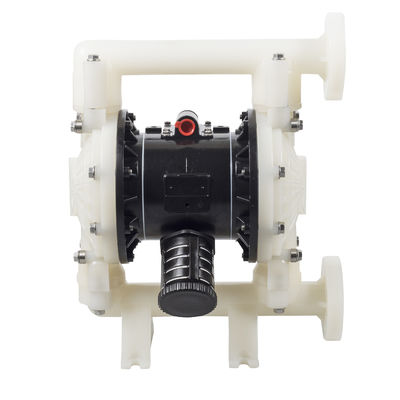

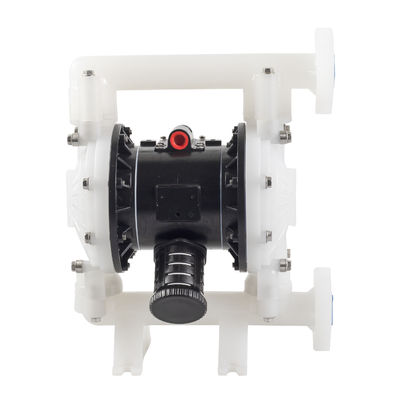

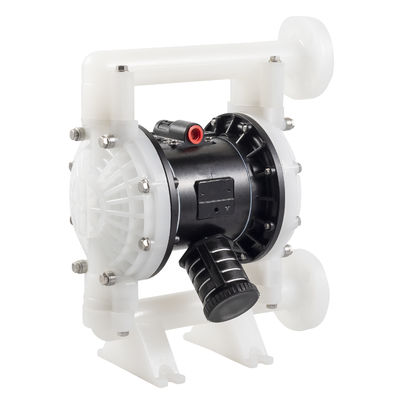

Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer

Certificat
LA CHINE Jianglang Technology  Co. Ltd. certifications
LA CHINE Jianglang Technology  Co. Ltd. certifications
Je suis en ligne une discussion en ligne

Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer

Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer
Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer

Image Grand :  Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer

Détails sur le produit: Conditions de paiement et expédition:
Quantité de commande min: 2 ensembles
Prix: $1,000/sets 2-999 sets

Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer

description de
Application: Autre Pression: Basse pression
Garantie: 1 an brand name: RV
Lieu d'origine: Shanghai, Chine Un accompagnement personnalisé: OEM, ODM
Source d'alimentation: Pneumatique Structure: Pompes de diaphragme
Tension: Pneumatique Matériel: PP
Nom: Pompe d'AODD Couleur: Blanc
Diaphragme: Ptfe vitesse: 276 cpm
Marque: Rv Emballage: carton
Pression maximale: 120psi (0,84 MPA, 8,4bar) Corps de la pompe: PP
Flux maximum: 40gpm(1500lpm)
Mettre en évidence:

276cpm PTFE Diaphragm Pump

,

1 Year Warranty Diaphragm Pump

,

PP Pump Body AODD Pump

Max Flow 40gpm 1500lpm PTFE Diaphragm Low Pressure Pneumatic Water Pump

High-performance pneumatic diaphragm pump designed for car wash systems, road cleaning, and wastewater liquid transfer applications.

Specifications
Parameter Value
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 40gpm (150lpm)
Max Reciprocating Speed 276cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.16in. (4mm)
Max Air Consumption 45 scfm (22.5L/S)
Air Inlet Size 1/2 in
Air Outlet Size 3/4 in
Fluid Inlet Size 1in
Fluid Outlet Size 1in
Weight (PP pump) 8.2KGS
Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer 0 Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer 1
Product Advantages
Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer 2
Packaging & Delivery
Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer 3 Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer 4 Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer 5 Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer 6
Manufacturer Profile
Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer 7
Jiangliang Technology Co., Ltd

Headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. Recognized as a High-Tech Enterprise and Credit Company with strong design and innovation capabilities.

Product Range

Specializing in diaphragm pumps and control valves including: Pneumatic Diaphragm Pumps, Electric Diaphragm Pumps, Piston Pumps, Powder Pumps, Sanitary Pumps, and various control valves.

Certifications & Standards

Holder of 40+ patents (including 10 invention patents), TS.A National Manufacturing License, CE, ATex, ISO9001, and SGS certifications. Contributor to national standards for pneumatic diaphragm pumps in petrochemical industry (SH/T 3191-2017).

Material Options
  • Wetted parts: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
  • Diaphragm materials: Teflon, Santoprene, Viton, Hytrel, Buna-N
  • Inlet/outlet sizes: 1/4" to 3" available
  • Connection types: Threaded (1/4" to 1-1/2" plastic, all metal) or Flanged (1/2" to 3" plastic)
Our Service
Pneumatic Diaphragm Pump with 1/2 in Air Inlet 3/4 in Air Outlet and 1in Fluid Inlet for Efficient Fluid Transfer 8
  • 24-hour response to all inquiries
  • Professional design team and manufacturing capability
  • Standard export wooden case packaging (non-fumigation)
  • Fast after-sales service
Frequently Asked Questions
What is MOQ?

1 pc for regular product. Samples available with cost deductible from future orders.

What payment methods do you accept?

D/P, T/T, Western Union - confirmed per order.

What is the delivery time?

1-7 working days typically, depending on quantity.

How are products packaged?

Cartons with foam inside, wooden case, and pallet options.

How are products shipped?

International express or sea freight.

What is the warranty period?

15 years for air motor, 5 years for pump body.

Can you produce custom specifications?

Yes, we can manufacture according to custom requirements.
